产品性能 / Product performance
1、 LH5040JCS散装货物装载机适用于货舱门高度在1150mm～4200mm之间的所有民航运输机的服务；LH5040JCS Conveyer belt loader is applicable to all civil aviation transporters with cargo door height between 1150mm and 4200mm.
2、 由自制底盘、发动机、液力变速器、驾驶室、货物传送系统、前后举升架、液压和电气系统组成；
It is composed of car chassis, engine, hydraulic transmission, cab, cargo transmission system, front and rear lifting frame, hydraulic and electrical system.
3、 发动机有三种型号可选装，排放符合国四标准，日本原装进口自动变速器；
There are three available types of engines, the emission meets the four national standards, and the automatic transmission imported from Japan is original.
4、 底盘前后轴装有钢板弹簧悬挂装置，驾驶舒适；
The front and rear axles of the chassis are equipped with a steel plate spring suspension device for comfortable driving.
5、 传送带宽度700mm，便于大件货物装卸；
The width of the conveyer belt is 700mm, which is convenient for the loading and unloading of large goods.
6、 装有四只液压支撑脚，操作快捷方便；
The loader is equipped with four hydraulic supporting feet, it is easy to operate.

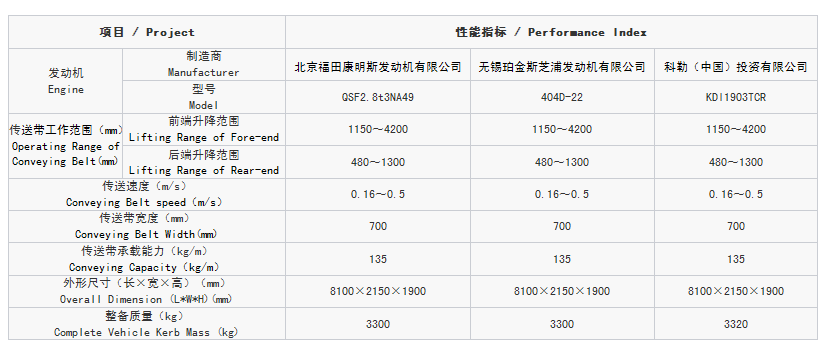

技术参数 / Technical parameter
